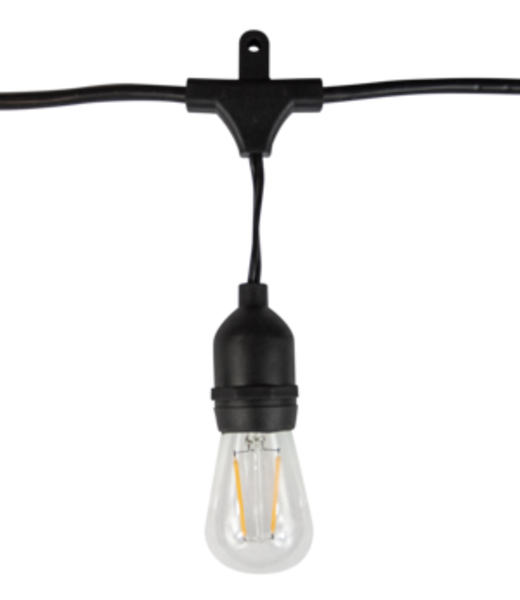

LED Bistro String Light, 12VAC, 2-way Mounting Holes, no lamps : Priced Per Foot

The Brilliance Low Voltage Bistro String Reel comes in a 328 ft. spool (100m) and can be cut to length at the distributorship per the buyer’s requirements. Use this low voltage bistro string with the corresponding low voltage string connection accessories for custom length bistro lighting.

This string is for use with low voltage S14 lamps only. Mounting cable and turnbuckles are not included. Connection accessories (see below) and lamps are sold separately.

NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft) horizontally from the nearest edge of the water, unless permitted by Article 680.

FEATURES:

• Patented design (U.S. Patent D898986S)
• features a waterproof seal

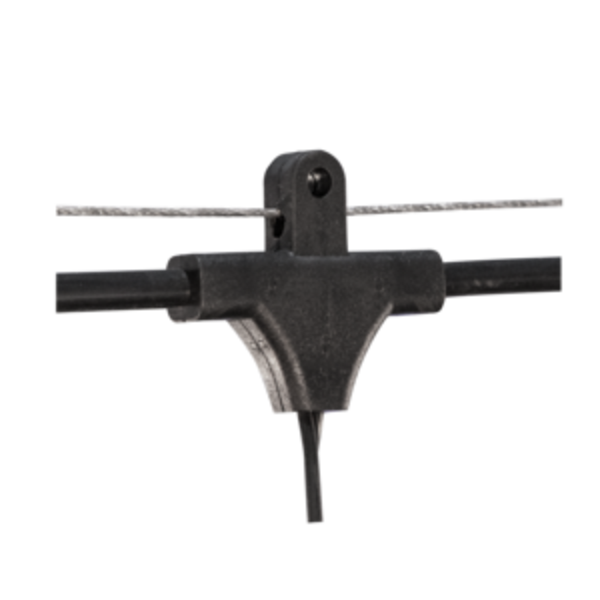

• Two-way mounting holes at each lamp position eliminate the need for zip ties and creates a more secure installation for the life of the string lights

CONNECTOR ACCESSORIES

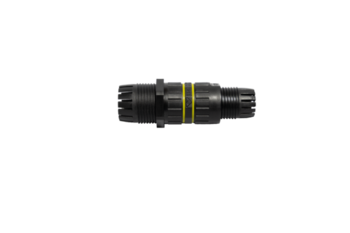

Low Voltage Bistro String Straight Connector

The Low Voltage Bistro String Straight Connector is an accessory to customize the length of the Low Voltage Bistro String Reel only. Use with Brilliance Low Voltage Bistro String to convert low voltage landscape lighting cable to SO cable. Order one Low Voltage Bistro String Straight Connector for each instance in which you have to convert low voltage landscape lighting cable to SO cable.

Low Voltage Bistro String T Connector

The Low Voltage Bistro String T Connector is an accessory to customize the length of the Low Voltage Bistro String Reel only. Use with Brilliance Low Voltage Bistro String for wherever you want to change directions, or when you need to combine two sections of SO cable. Order one Low Voltage Bistro String T Connector for each center feed used.

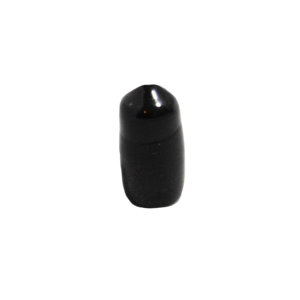

Low Voltage Bistro String End Cap

The Low Voltage Bistro String End Cap is an accessory to customize the length of the Low Voltage Bistro String Reel only. Use with Brilliance Low Voltage Bistro String for wherever you have an end of SO cord. Order one Low Voltage Bistro String End cap for each string end.



INSTALLATION
INSTALLING THE BISTRO STRING STRAIGHT CONNECTOR TO THE LANDSCAPE CABLE SIDE

Unscrew the plastic nut from the straight connector.
Using some needle nose pliers, gently remove the two-hole rubber grommet from the throat coupler.
Unscrew the throat coupler from the center coupler.
Using a Philips screwdriver, unscrew the two cable terminals on either side from each other. The middle terminal is not used for two conductor landscape cable.
Strip the landscape cable approximately 1/2 inch.
Pass the landscape cable through the nut rounded side first.
Splitting the cable apart, insert each conductor through the holes of the two-hole rubber grommet.
Pass the landscape cable through the large side of the throat coupler with the fin side first.
Insert one side of the split cable into the open cable terminals and tighten the terminal screw. Repeat this step for the other side of the split cable.
Once both conductors have been attached, thread the throat coupler to the center coupler on the terminal side and screw them together to tighten.
Position the two-hole rubber grommet into the fin side of the throat coupler.
Thread the compression nut back on to the fin side of the throat coupler.
Hand tighten until the landscape cable has been compressed. Do not overtighten.


INSTALLING THE BISTRO STRING STRAIGHT CONNECTOR TO THE SO CABLE SIDE

Unscrew the plastic nut from the SO Cable side of the connection.
Using some needle nose pliers, gently remove the one-hole rubber grommet from the throat coupler.
Unscrew the throat coupler from the center coupler.
Using a Philips screwdriver, unscrew the two cable terminals on either side from each other. The middle terminal is not used for two conductor SO cable.
Strip the SO cable to reveal the black and white conductors, approximately 1-1/2 inches.
Pass the plastic compression nut over the SO cable with the rounded side first.
Insert the SO cable through the hole of the rubber grommet.
Pass the SO cable through the small side of the throat coupler with the fin side first.
Insert the black and white conductors into the opened terminals. Tighten both terminal screws.
Once both conductors have been attached, thread the throat coupler to the center coupler on the terminal side and screw them together to tighten.
Position the one-hole rubber grommet into the fin side of the throat coupler.
Thread the compression nut back on to the fin side of the throat coupler.
Hand tighten until the SO cable has been compressed. Do not overtighten.


INSTALLING THE BISTRO STRING T CONNECTOR

Unscrew the plastic nut from the SO Cable side of the connection.
Using some needle nose pliers, gently remove the one-hole rubber grommet from the throat coupler.
Unscrew the throat coupler from the center coupler.
Using a Philips screwdriver, unscrew the two cable terminals on either side from each other. The middle terminal is not used for two conductor SO cable.
Strip the SO cable to reveal the black and white conductors, approximately 1-1/2 inches.
Pass the plastic compression nut over the SO cable with the rounded side first.
Insert the SO cable through the hole of the rubber grommet.
Pass the SO cable through the large side of the throat coupler with the fin side first.
Insert the black and white conductors into the opened terminals. Tighten both terminal screws.
Once both conductors have been attached, thread the throat coupler to the center coupler on the terminal side and screw them together to tighten.
Position the one-hole rubber grommet into the fin side of the throat coupler.
Thread the compression nut back on to the fin side of the throat coupler. Hand tighten until the SO cable has been compressed. Do not overtighten.
Repeat these instructions for each side of the T connection.


INSTALLING THE BISTRO STRING END CAP

Examine the end of the SO cable.
Be certain that none of the conductors or strands of cable are touching each other.
Apply a small amount of silicone to the end of the SO cable.
Slide the end cap over the SO cable jacket to secure it. Refer to the silicon manufacturer’s information for recommended cure time.
