Gem 22mm Inground: Stainless

(0) No Reviews yet
SKU: ST/GEM

This item is IN STOCK

Current Stock: 11487

Details

Beam Spread

120°

Colour Temp

3000K - Warm White

Light Source

1 integrated Epistar LED

Wattage / VA

0.2W | 6 Lm / 0.32 VA

Light Reach

2 ft.

Listing Approval

cETL listed for use in Canada

Finish

316 Stainless Steel with frosted lens

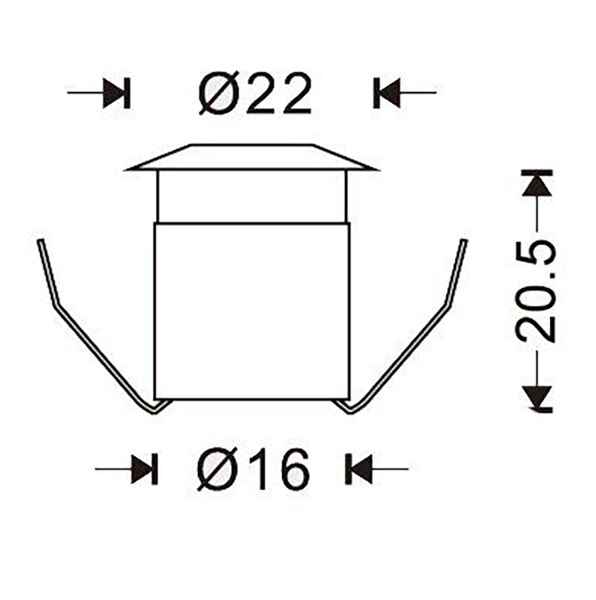

Dimensions

22mm Ring.  16 mm Body x 20.5H mm
0.86" Ring.  0.63" Body x 0.81" Height
(2.4mm (3/32) above ground)
Suggested opening: 0.70" or 18mm (11/16th drill bit)

Wiring

36" of usable #18-2

Operating Range

9V - 15V AC

IP Rating

IP67 Rated for wet locations

Housing

316 Stainless Steel
316 Stainless is more resistant to corrosion than 304 Stainless - allowing for installation around
chlorinated and salt water pools
Walk and drive-over rated

Includes 2 gel-filled wire nuts, retaining spring clip.

Warranty

5 Year  |  50,000 Hours



Applications Include:

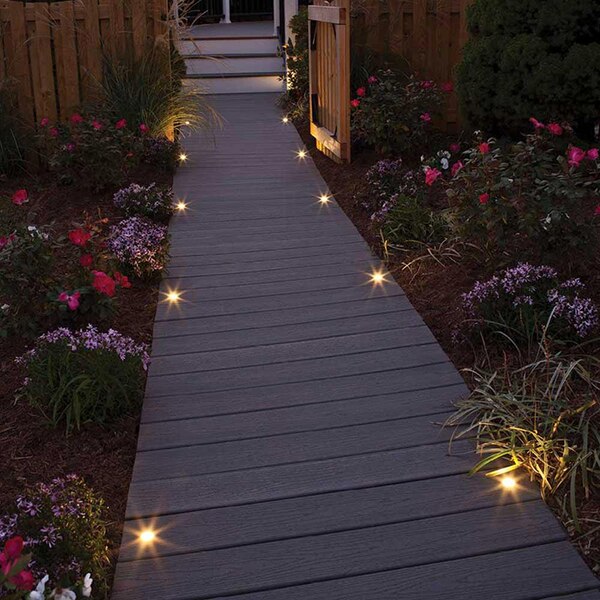

Indicator light on pavers, decks or concrete

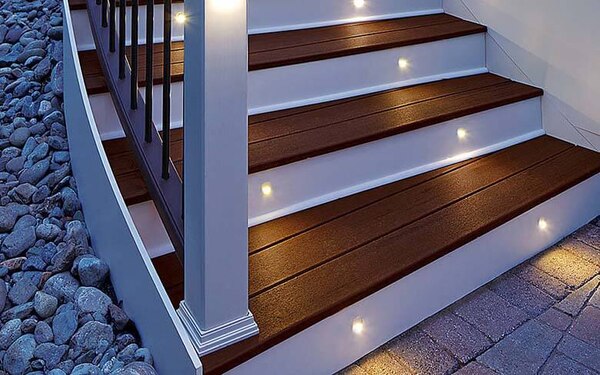

Step lighting on entrance ways

Down-lighting on pergolas or outdoor

structures

Installation Tip: Use heat shrink on the connection for a professional, water tight installation!



Expandable:  Unlike many 12V DC dot lights on the market, these units require a 12V AC power supply.  This allows you to connect to any 12V AC output landscape transformer.   You are no longer limted to powering a few lights with one driver. Warranty is covered when used with ANY 12V AC output transformer listed for use in Canada.
