Airmax® PondSeries® PS20 - No Airline
Details
Aeration systems utilize a shore-mounted air pump that delivers air to specialized diffuser plates that are located on the pond bottom. Resulting in a column of rising bubbles that circulates water throughout the pond, eliminating a change in temperature or thermocline. With increased oxygen and added natural bacteria, any excess nutrients in the pond or lake are metabolized, resulting in cleaner, clearer water and less muck. Results you can see in just 90 days!

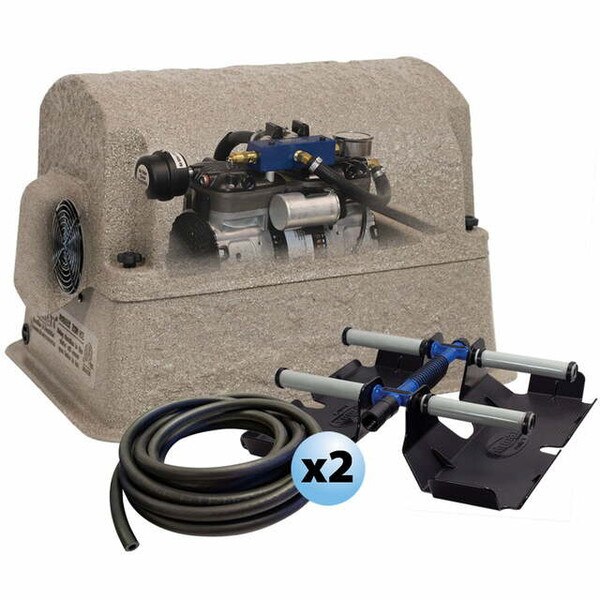

Airmax PondSeries PS20 Aeration System
Easy Installation with Options - Airmax Aeration Systems are the easiest and most versatile systems to install on the market. PondSeries PS20 System can be installed at the waters edge or up to 1/4 mile away from the pond or lake. No power is needed at shore and select from 115V or 230V systems. Airmax EasySet™ airline delivers oxygen to the water without the added expense of hiring an electrician.
Standard Airmax Composite Cabinet - ETL electrical safety certified composite cabinet has a quiet design with a faux rock finish to blend into any landscape. The removable top and side high density air intake filter protects the compressor and pre-wired electrical box from outside contaminants, while providing easy access. Other cabinet features include an elevated base protecting against damaging flood water and a ventilation fan with rain shroud cools and protects against moisture and heat damage. Standard cabinet dimensions: 23"L x 17"W x 15"H
SilentAir™ Compressor with SmartStart™ Technology - The heart and soul of each PondSeries Aeration System is a powerful whisper-quiet SilentAir RP50 1/2 HP Rocking Piston Compressors built with SmartStart Technology to protect compressor during pressurized restarts following power supply interruptions. Each highly efficient 115V or 230V compressor comes with rubber mounts to reduce noise and vibrations to ensure a silent operation. Each compressor can push up to 4.7 CFMs of oxygen to your pond, while costing as little as $33.95 a month.
Airflow Manifold Assembly - Airmax simplifies airflow management to individual diffuser plates with a 2-port manifold with nickel plated ball valves, braided hose sleeves that protect internal airlines from wear and airline quick disconnects for fast and secure airline connections and system removal for storage. PondSeries PS20 Systems is setup for 3/8" or 5/8" airline.
ProAir™4 Weighted Diffusers - Designed for maximum oxygen uptake, 2 ProAir 4 Weighted Diffusers incorporates high-efficiency low-maintenance membrane sticks to release tiny oxygen bubbles into the water column. Membrane diffusers posses the synergy of air stones without the headaches of cracking and acid-washing. The ProAir 4 Weighted Diffuser has an integrated check valve to prevent back-pressure on the compressor. The innovative sled design keeps the ProAir 4 submerged while maintaining an upright position during installation. Comes with a 5-year warranty.
Tech Specs
 | ||
|---|---|---|
| | | PS20 |
| Max Pond Size | Up to 2 Acres | |
| Max Diffuser Depth** | 21' | |
| Aerates Pond Size Up to 6'-9' Depth | Up to 1/2 Acre | |
| Aerates Pond Size Up to 9'-12' Depth | Up to 1 Acre | |
| Aerates Pond Size Up to 12'-21' Depth | Up to 2 Acre | |
| SilentAir Compressor | RP50 1/2 HP Rocking Piston Compressor | |
| Running Amps | 4.1 or 2.05 | |
| Voltage | 115V or 230V | |
| Wattage | 472 Watts | |
| Max CFM | 4.7 | |
| ProAir4 Diffusers | 2 Plates | |
| Airmax Composite Cabinet | Standard Cabinet | |
| Cabinet Dimensions | 23"L x 17"W x 15"H | |
| Power Cord | 6' | |
| Monthly Operating Cost (24/7)* | $33.95 | |
| ProAir Diffuser Warranty | 5-Years | |
| Compressor & Electrical Component Warranty | 3-Years | |
| Composite Cabinet Warranty | Lifetime Warranty | |
| EasySet Airline Warranty | 5-Years |
*Monthly Operating Cost is calculated at $0.10 per kilowatt hour. Please note that costs vary by location.
**Max Depth 50' when installed with a Camlock Connector Kit.
