12" Splash Series Spillway - Blue LED

(0)No Reviews yet
SKU: ST/WF12BL
Manufacturer: Striker

Details

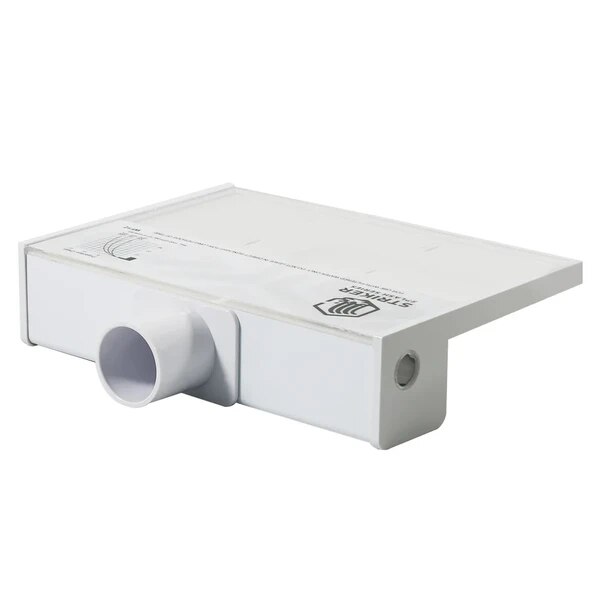

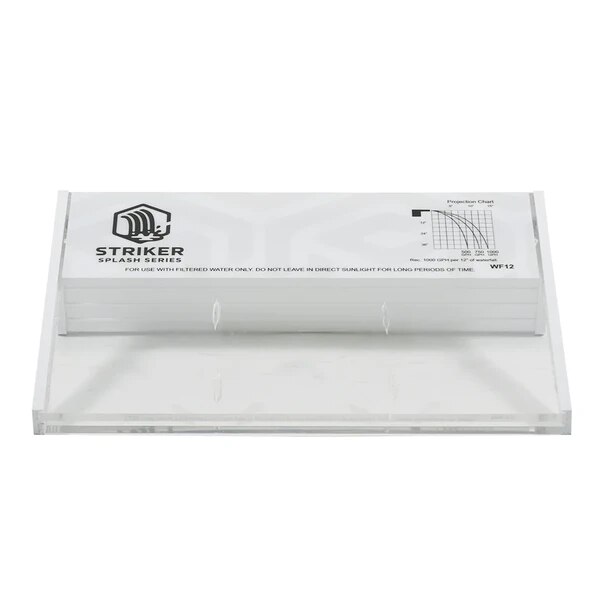

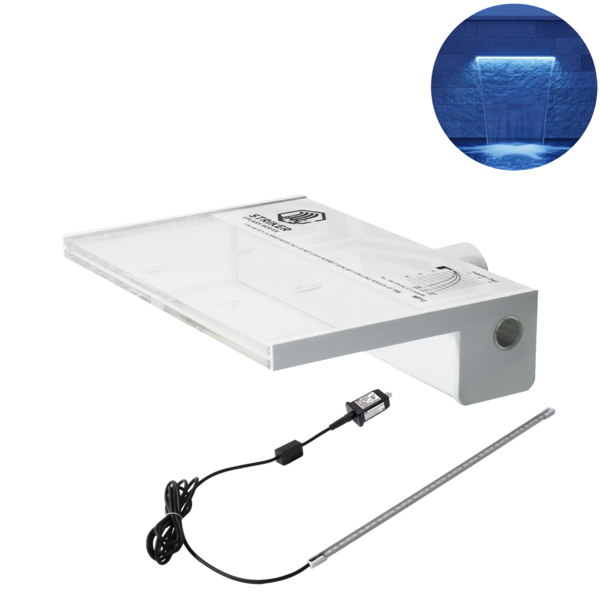

The Striker Splash Series Pool Spillways are engineered to produce a smooth, uniform laminar sheet of water, making them ideal for modern pool and raised wall applications. Each unit is constructed with a durable structural ABS body for enhanced strength and long-term performance, paired with a precision clear acrylic lip that creates a crisp, glass-like water edge. The acrylic mouth accommodates optional integrated LED lighting, available in Blue, Warm White, or Cool White, adding striking visual impact in evening environments.

Designed exclusively for filtered pool water systems, these spillways offer a load-bearing capacity of 40 lbs per linear foot when properly installed. The unit REQUIRES weight on the lip extension, and both the base and top surfaces must be fully supported and in contact with surrounding construction to prevent shifting or separation of the clear acrylic mouth. Not intended for pond or water garden use, proper structural support and filtered water are essential to ensure optimal long-term performance.

Specifications

Suggested Flow Rate Up To: 1000 GPH
Rec. Install Height: 18–24” Above Water Level
Projection: 12–14” @ 18” Install Height
Input Voltage: 12V DC
Watts: 4W
Wiring: 32’ Power Cord
Inlet: 1.5” Socket
Warranty: 2 Year
Dimensions: 12”W x 8.5”D x 3”H
Made In: China
Hardware: Spillway, Protective Tongue & 20W Power Supply & Blue LED Light Bar
UPC: 788792039001 & 788792039049
